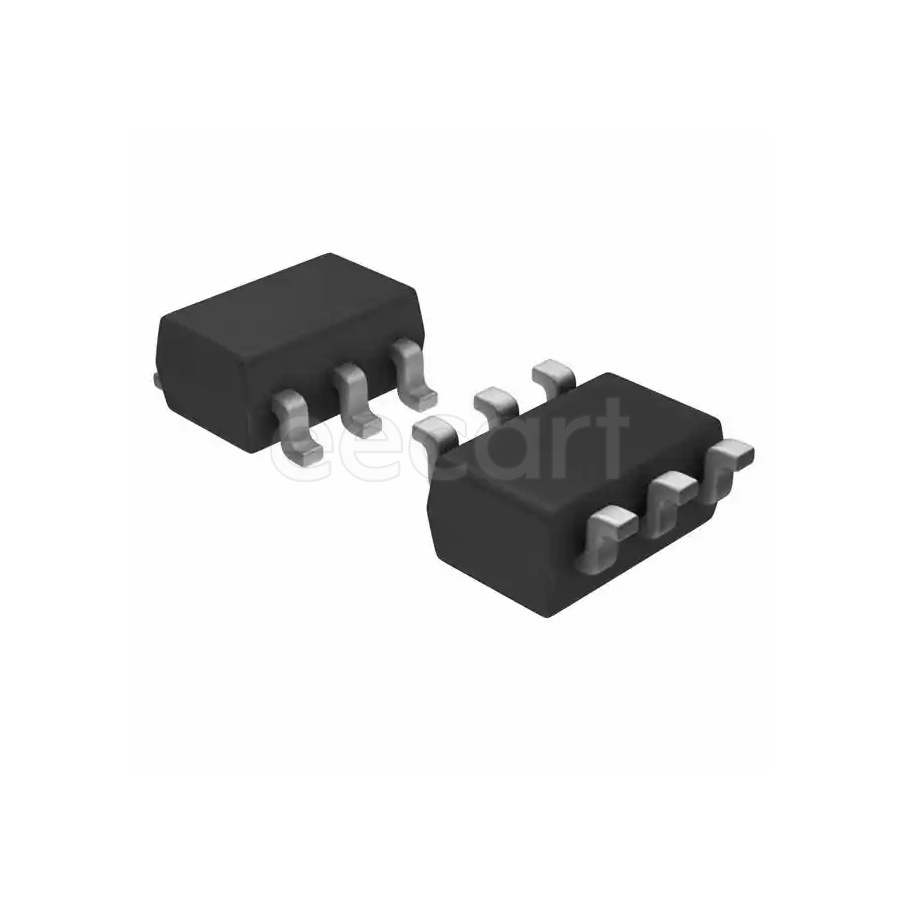

FDC6329L
Manufacturer:
On Semiconductor
Mfr.Part #:
FDC6329L
Datasheet:
Description:
Power Switch ICs - Power Distribution SuperSOT-6 SMD/SMT 105 mΩ
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 8 V |
| Length | 3 mm |
| Width | 1.7 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 6 |
| Resistance | 70 mΩ |
| Power Rating | 700 mW |
| Height | 1 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 8 V |
| REACH SVHC | No SVHC |
| Weight | 0.036 g |
| Type | Load Switches |
| Number of Terminals | 6 |
| Current | 2.5 A |
| Current Rating | 2.5 A |
| Interface | On/Off |
| Min Input Voltage | 2.5 V |
| Output Current | 1.9 A |
| Operating Supply Voltage | 8 V |
| Output Type | P-Channel |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Power Dissipation | 700 mW |
| Max Supply Voltage | 8 V |
| Min Supply Voltage | 2.5 V |
| Power Dissipation | 700 mW |
| Max Output Current | 2.5 A |
| Number of Channels | 1 |
| Continuous Drain Current (ID) | 2.5 A |
| Drain to Source Voltage (Vdss) | 8 V |
| Output Configuration | High Side |
| Max Input Voltage | 8 V |
| Number of Outputs | 1 |
| Nominal Input Voltage | 8 V |
| Drain to Source Resistance | 70 mΩ |
| Max Junction Temperature (Tj) | 150 °C |
| On-State Resistance | 47 mΩ |
| Schedule B | 8541290080 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
| On Resistance (RON) | 105 mΩ |
Stock: 1299
Distributors
pcbx
pcbxUnit Price$0.58819
Ext.Price$0.58819
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58819 | $0.58819 |
| 10 | $0.46790 | $4.67900 |
| 25 | $0.42583 | $10.64575 |
| 50 | $0.38754 | $19.37700 |
| 100 | $0.35269 | $35.26900 |
| 300 | $0.33421 | $100.26300 |
| 500 | $0.31671 | $158.35500 |
| 1000 | $0.29866 | $298.66000 |
